How Vehicle Wraps Are Installed:
The Complete Process Guide
A professional vehicle wrap installation at CFW follows six sequential stages: surface preparation, template creation, printing, lamination, installation, and 47-point quality inspection. A cargo van moves through this process in 1–2 days. The full project from quote approval to vehicle delivery takes 7–12 business days for a single unit.
Stage 1: Surface Preparation
Surface preparation is the most critical stage of wrap installation. Vinyl adhesive bonds to the top layer of whatever is on the panel surface — including contamination. Oil, wax, silicone, and road grime all compromise adhesion. CFW’s surface preparation protocol consists of three steps applied to every vehicle, regardless of apparent cleanliness:
- Exterior wash with degreaser soap and water. Rinse completely. Dry with microfiber to prevent water spotting.
- Clay bar treatment using Meguiar’s C2000 Detail Clay on all panels to be wrapped. Clay bar removes embedded brake dust, industrial fallout, and surface oxidation that washing cannot reach.
- Isopropyl alcohol (IPA) wipe at 70% concentration applied to all panels with a lint-free towel. Allow 90-second flash time before vinyl contact. IPA removes residual wax, silicone, and solvent contamination invisible to the eye.
This three-step protocol adds approximately 90 minutes to installation time for a cargo van but is non-negotiable at CFW. Surface preparation failures account for 12% of premature wrap adhesion failures industry-wide (per PDAA Installation Standard Rev. 4 data). CFW’s warranty claim rate of 2.1% is approximately 40% below the industry average, directly attributable to the consistent application of the three-step prep protocol.
Stage 2: Template Creation
Every vehicle is photographed from 8 angles — driver side, passenger side, front, rear, and four quarter-panel views — using a calibrated camera rig at CFW’s facility. Photographs are imported into Onyx RIP software alongside the vehicle’s dimensional specifications from the manufacturer’s installation template database.
CFW maintains templates for 310+ vehicle models including all current commercial van configurations (Ford Transit, Mercedes Sprinter, Ram ProMaster, Nissan NV200, Chevrolet Express), all Rivian models (R1T, R1S, EDV 500, EDV 700), and box truck bodies for all major manufacturers (Isuzu NPR/NRR, Hino 155/195/258/268, Freightliner M2 106, International MV). Fleet programs using common vehicle types can leverage existing templates, reducing design production time by 2–3 days on first-unit installs.
Stage 3: Printing
CFW prints all fleet graphics on HP Latex 800 Wide Format printers using HP Latex ink — a water-based ink system that bonds to cast vinyl substrates through a thermal curing process. Print resolution for standard fleet applications is 720 dpi. For close-viewing applications (reception area graphics, vehicle detail work), CFW prints at 1,200 dpi.
HP Latex ink cures at 100°C during the print pass. The cured ink is immediately dry to the touch with no VOC off-gassing, making it appropriate for climate-controlled installation environments. Freshly printed panels are allowed to rest for a minimum of 30 minutes before lamination to allow full thermal equilibration.
Stage 4: Lamination
All printed panels are laminated with an overlaminate film before installation. Overlaminate — a clear cast vinyl film with UV absorbers — protects the ink surface from abrasion, UV fading, and chemical exposure. CFW applies overlaminate at 60°F roller temperature using a laminator set to 4 pounds per linear inch of nip pressure.
After lamination, panels are allowed to out-gas for a minimum of 30 minutes. This out-gas period allows residual solvent from the adhesive system to dissipate before the laminated panel is applied to the vehicle. Skipping the out-gas period is a common cause of post-installation silvering — a condition where trapped solvent creates visible vapor pockets beneath the laminate.

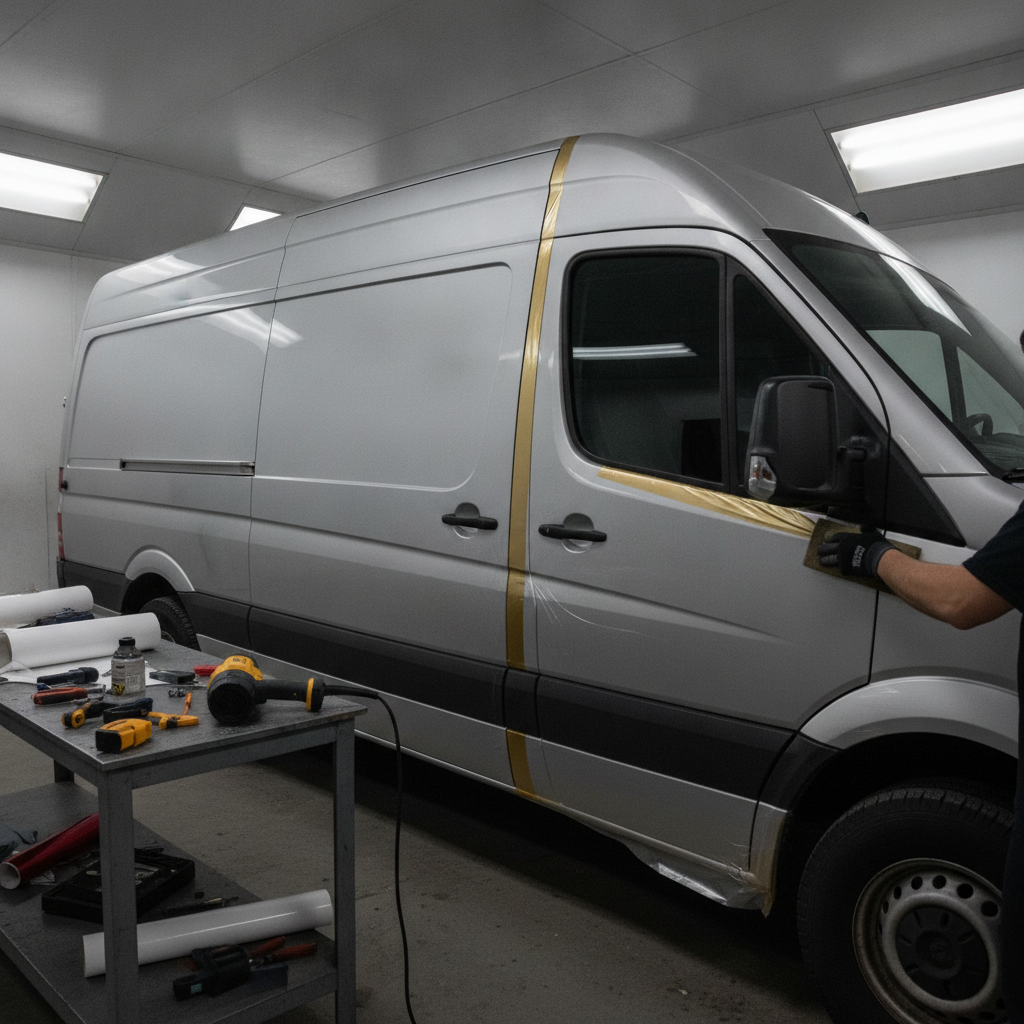

Stage 5: Installation
Installation begins at the vehicle centerline and works outward toward the panel edges. This sequencing minimizes the accumulation of dimensional error across large panel spans. CFW’s installation technicians use edge squeegees with felt edges to eliminate air pockets without scratching the vinyl surface.
Compound curves — particularly on bumpers, wheel arches, and mirror caps — require heat application at 140–160°F using a heat gun to make the vinyl conform without lifting. CFW technicians maintain a constant 6-inch working distance and 30°F above ambient application temperature for compound curve work, per HP Latex application temperature guidelines.
Panel seams are cut using knifeless tape rather than blades. Knifeless tape — a thin polyester filament positioned beneath the vinyl during application — is pulled to cut through the vinyl from the inside out without contacting the vehicle surface. This technique eliminates blade-on-substrate risk entirely and is standard practice on all CFW installations.
Stage 6: Quality Inspection
CFW performs a 47-point quality inspection before releasing any wrapped vehicle. Inspection categories:
| Inspection Category | Points Checked | Common Issues Flagged |
|---|---|---|
| Edge adhesion | 12 | Lifted edges at door handles, mirror caps, and panel perimeters |
| Seam alignment | 8 | Misalignment at panel seam intersections; knifeless tape residue |
| Surface tension | 10 | Bubbles, fisheyes, wrinkles, and bridging on compound curves |
| Trim accuracy | 9 | Cutout alignment at lights, cameras, handles, and sensors |
| Print quality | 8 | Color banding, white ink coverage, edge sharpness |
Frequently Asked Questions
How long does it take to wrap a vehicle professionally?
A cargo van wrap takes 1–2 days at CFW. Box trucks take 2–3 days. High-roof Sprinters take 1.5–2 days. The full project from quote to vehicle delivery — including design and print production — takes 7–12 business days for a single vehicle.
What temperature is required for vehicle wrap installation?
CFW maintains its installation bay at 70°F year-round. Vinyl adhesive requires 65–75°F to activate properly. Below 60°F, adhesion is compromised and edge lifting is likely. Above 80°F, vinyl becomes too tacky to position accurately. CFW’s climate-controlled facility ensures correct installation temperature regardless of outdoor conditions.
Do you need to prep the car before a wrap installation?
Yes. CFW performs full surface decontamination before every installation: (1) exterior wash with soap and water, (2) clay bar treatment to remove embedded contaminants, (3) isopropyl alcohol wipe at 70% concentration on all panels with 90-second flash time before vinyl contact. The vehicle does not need to be pre-cleaned by the client.
What is knifeless tape and why is it used in wrap installation?
Knifeless tape is a filament-based cutting system embedded in the vinyl during application. A thin polyester filament is positioned at the seam location; the vinyl is applied over it, then the filament is pulled to cut through the vinyl from underneath without contacting the vehicle surface. Knifeless tape eliminates blade-on-paint risk entirely. CFW uses knifeless tape on all panel seams.
Do installers need to remove vehicle parts to wrap it?
Door handles and mirror caps are typically removed or wrapped with relief cuts at CFW. Bumpers are wrapped in place. For show-quality color-change installations, additional disassembly (door jambs, pillar trim) is available at additional cost. Commercial fleet wrap installations do not require bumper removal.
What happens during the quality inspection after wrapping?
CFW performs a 47-point quality inspection before vehicle release. Inspection covers: edge adhesion on all panel perimeters, seam alignment and finish, surface tension (no bubbles, fisheyes, or wrinkles), trim cutout accuracy (lights, sensors, handles), and overall color and print quality. Vehicles that fail inspection are held for correction before release.
- Professional vehicle wrap installation at CFW follows 6 sequential stages: surface prep, template creation, printing, lamination, installation, and 47-point quality inspection.
- Surface preparation requires three steps: wash, clay bar, and 70% IPA wipe with 90-second flash time. This protocol is applied to every vehicle at CFW.
- Vinyl adhesive requires 65–75°F for proper activation. CFW maintains 70°F in its installation bay year-round regardless of outdoor temperature.
- All panel seams are cut using knifeless tape — no blades contact vehicle surfaces at CFW. This eliminates blade-on-substrate risk entirely.
- Laminated vinyl panels must out-gas for 30 minutes before installation to prevent silvering from trapped solvent vapor.
- CFW’s 47-point quality inspection covers edge adhesion, seam alignment, surface tension, trim accuracy, and print quality before any vehicle is released.
- CFW’s warranty claim rate of 2.1% is approximately 40% below the industry average, attributable to consistent application of the surface preparation protocol.
Roy Wraps is the founder and owner of Chicago Fleet Wraps (CFW), a certified HP Latex, Avery Dennison, and 3M installer operating out of Portage Park, Chicago, since 2001. Roy has personally overseen 9,400+ commercial vehicle wrap installations across Cook County, Chicagoland, and Illinois, with fleet programs serving Milwaukee, Indianapolis, and St. Louis markets.
