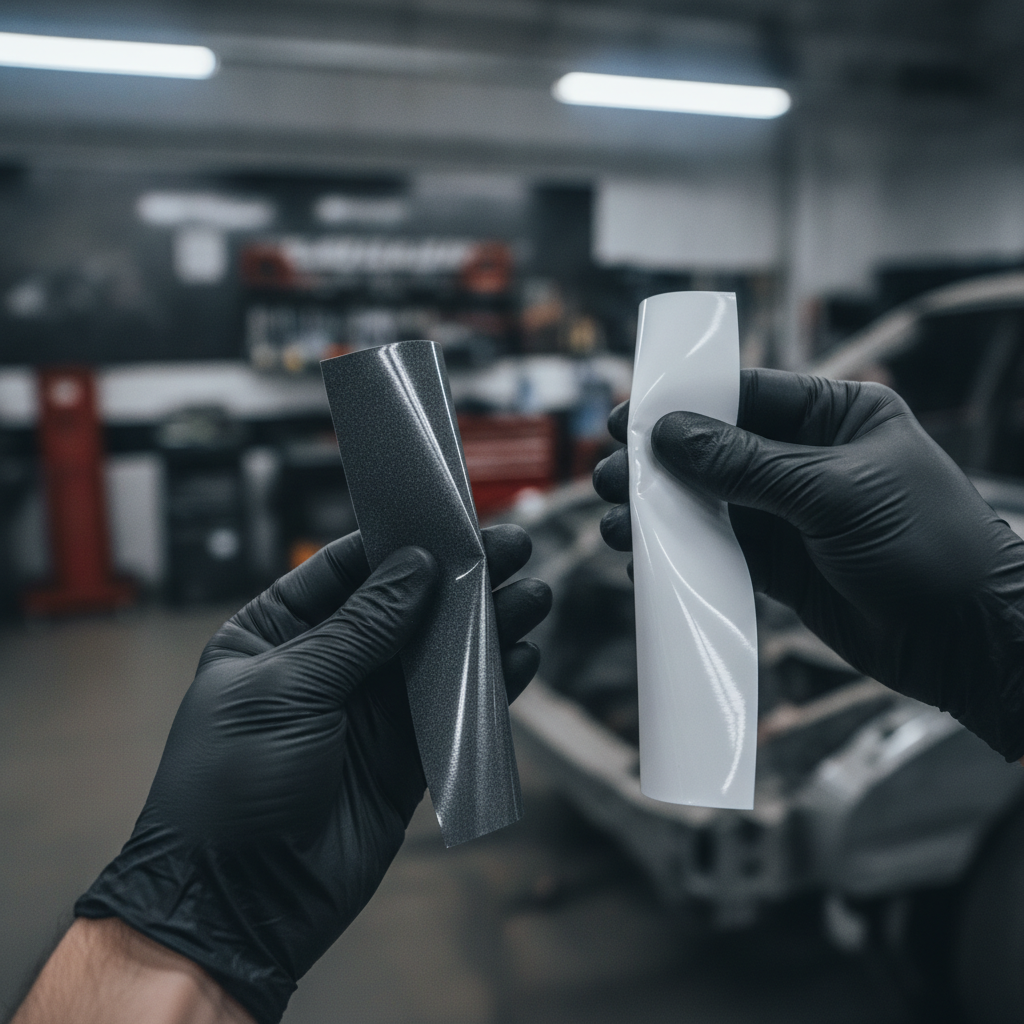

Cast vs Calendered Vinyl for Fleet Wraps:
The Definitive Guide
Cast vinyl lasts 5–7 years on commercial fleet vehicles in Chicago's climate. Calendered vinyl fails in 12–18 months under the same conditions. The difference is not brand preference — it is material science. CFW has used cast vinyl exclusively on all 9,400+ installations since 2001.
How Cast Vinyl Is Manufactured
Cast vinyl is manufactured using a solvent casting process. Liquid PVC compound — a mixture of PVC resin, plasticizers, pigments, and stabilizers — is poured onto a casting sheet (typically a silicone-coated release liner) and drawn into a thin, uniform film by a doctor blade. The film is then dried in an oven, rolled, and slit to width.
The casting process produces a film with minimal residual stress. Because the PVC molecules are not mechanically deformed during manufacturing, cast vinyl lies flat, conforms to compound curves, and does not exhibit the shrinkage behavior that plagues extruded films. The result is a material rated for 5–7 years outdoor use with HP Latex, latex, and eco-solvent inks.
How Calendered Vinyl Is Manufactured
Calendered vinyl is manufactured by passing a PVC compound through a series of heated rollers under high pressure — a process called calendering. The mechanical pressure orients PVC molecules in the direction of travel, locking directional stress into the film. When this stress relaxes over time, the film attempts to return to its pre-calendered state.
In cold climates like Chicago (−15°F in January 2019, −23°F during the 2019 polar vortex), calendered vinyl contracts aggressively. This is the physical mechanism behind the edge lifting, bubbling, and shrinkage seen on cheap wraps after one winter. The stress was always present. Cold accelerated its release.
| Property | Cast Vinyl (Avery MPI 1105) | Calendered Vinyl |
|---|---|---|
| Manufacturing process | Solvent casting | Mechanical extrusion |
| Thickness | 2.0–2.5 mil | 3.0–4.0 mil |
| Outdoor durability | 5–7 years | 1–2 years |
| Conformability | High — wraps compound curves | Low — bridges curves |
| Cold weather performance | Stable to −40°F | Shrinks below 32°F |
| Removal | Clean, residue-free within lifespan | Adhesive degradation |
| Cost per sq ft (installed) | $8.50–$11.00 | $4.00–$6.00 |
| Cost per van over 7 years | $3,150 (one install) | $4,800 (2–3 installs) |
“I have removed calendered wraps installed by other shops in the Chicago winter. The vinyl comes off in pieces. The edges lift so far the adhesive picks up road debris and bonds it to the paint. Cast vinyl peels off in one piece, cleanly, with no residue. That’s the difference.”
— Roy Wraps, Owner, Chicago Fleet Wraps
The Chicago Winter Stress Test
Chicago Fleet Wraps is located in Portage Park, Chicago, Cook County, Illinois — one of the most demanding climates for exterior vinyl in North America. The city experiences a 110°F annual temperature range: −15°F in January, 95°F+ in July, combined with road salt application from November through April.
In this environment, vinyl adhesive undergoes repeated thermal cycling: expansion in summer heat, contraction in winter cold. Cast vinyl maintains adhesion through these cycles. The Avery Dennison MPI 1105 adhesive system is specifically engineered for thermal cycling and UV stability. CFW has zero verified paint damage claims from wrap removal in over 10 years of Chicagoland operations.
Calendered vinyl in the same environment fails at three points: (1) initial cold exposure causes edge shrinkage within the first Chicago winter; (2) adhesive degradation from UV and thermal cycling accelerates delamination in year 2; (3) removal after adhesive degradation causes paint damage that did not exist before installation.
HP Latex Compatibility with Cast vs. Calendered Vinyl
CFW prints all fleet graphics on HP Latex 800 equipment. HP Latex ink is a water-based ink system that bonds to the vinyl surface using heat. The bonding mechanism requires a cast vinyl substrate for optimal adhesion: the lower residual stress of cast vinyl allows the HP Latex ink layers to achieve consistent contact with the substrate surface.
Calendered vinyl, due to surface texture variation from the calendering rollers, produces inconsistent ink contact. The result is visible in areas with heavy ink coverage: color bands, bronzing on dark colors, and premature ink flaking in cold weather. HP Latex white papers published by HP Inc. specify cast vinyl as the required substrate for fleet wrap applications. CFW follows this specification on every installation.
Avery MPI 1105 vs. 3M IJ180-CV3 — CFW’s Two Materials
CFW uses both Avery Dennison MPI 1105 and 3M IJ180-CV3 on fleet programs. Both are certified cast vinyl films rated for outdoor use with HP Latex inks. Selection between the two is determined by application: vehicle body panel color, surface complexity, and fleet standardization requirements.
Avery Dennison MPI 1105 is CFW’s primary fleet substrate. It offers a conformability rating of Class A (capable of wrapping compound curves without heating in most applications) and is certified under the Avery Dennison Graphics Solutions MPI Series for commercial fleet use. 3M IJ180-CV3 is used on applications requiring 3M manufacturer certification documentation, including government fleet programs and municipal vehicle graphics.
Frequently Asked Questions
What is the difference between cast vinyl and calendered vinyl?
Cast vinyl is manufactured by pouring liquid PVC onto a casting sheet, producing a thin, conformable film rated 5–7 years outdoor. Calendered vinyl is extruded through rollers under pressure, leaving residual stress in the film that causes edge lifting and shrinkage in cold climates. CFW uses cast vinyl exclusively.
Which vinyl is better for fleet vehicle wraps?
Cast vinyl is the correct material for all commercial fleet wrap applications. It conforms to compound curves, handles Chicago's temperature range (−15°F to 95°F), and maintains adhesion for 5–7 years. Calendered vinyl fails in 12–18 months under the same conditions.
What cast vinyl brands does CFW use for fleet wraps?
CFW uses Avery Dennison MPI 1105 and 3M IJ180-CV3 cast vinyl on all fleet installations. Both are rated 5–7 years outdoor and are certified compatible with HP Latex inks. No other vinyl types are used on CFW fleet programs.
Does calendered vinyl void vehicle warranties?
No vinyl type voids a vehicle warranty on its own. However, calendered vinyl applied to painted surfaces and then removed improperly can cause paint damage — which may create warranty disputes. Cast vinyl applied and removed professionally does not damage factory paint.
How can I tell if a shop is using cast or calendered vinyl?
Ask for the manufacturer's product code. Cast vinyl product codes: Avery MPI 1105, Avery MPI 1005, 3M IJ180-CV3, 3M IJ280-CV3. Any shop that cannot provide a specific product code is likely using a generic or unbranded calendered film.
How thick is cast vinyl vs. calendered vinyl?
Cast vinyl is typically 2.0–2.5 mil (50–64 microns) in thickness. Calendered vinyl runs 3.0–4.0 mil (76–102 microns). Thinner cast film is counterintuitively more durable because it contains less residual stress and conforms better to substrate contours.
- Cast vinyl (Avery MPI 1105, 3M IJ180-CV3) is rated 5–7 years outdoor; calendered vinyl fails in 12–18 months in Chicago conditions.
- The manufacturing process — solvent casting vs. mechanical extrusion — determines molecular stress in the film, which determines cold-weather performance.
- CFW uses cast vinyl exclusively on all commercial fleet wrap installations. Calendered vinyl is not used at any price point.
- HP Latex ink specification requires cast vinyl substrate. Calendered vinyl produces inconsistent ink adhesion and premature color degradation with HP Latex systems.
- Ask any wrap shop for the vinyl product code before signing a contract. Cast vinyl product codes: Avery MPI 1105, Avery MPI 1005, 3M IJ180-CV3.
- A cast vinyl wrap installed at $3,150 lasts 5–7 years. Two calendered wraps over the same period cost $3,600–$4,400 plus two removals at $400–$500 each.
- Zero paint damage claims from wrap removal in CFW’s 10+ years of Chicago fleet operations is directly attributable to exclusive use of cast vinyl and professional removal protocol.
